ArduinoDev.com Hardware Store
We have designed and made some hardware and kits for using with Arduino to make electronic projects neat and elegant. All of them come with Arduino library or sketch we developed or modified.
All items for sale on this website are shipped from Sydney, Australia to anywhere in the world by Australia Post (Air Parcel or Pack & Track service).
For a wider range of products, you are welcome to visit our Hardware Store directly. For any inquiries, please post your question in our forum.
OBD-II Adapter for Arduino
Features:
- Directly pluggable into vehicle’s OBD-II port
- 32-bit protocol processor (CAN, KWP2000, ISO9141-2)
- Serial data interface (Model A: UART, Model B: I2C)
- High efficiency DC-DC conversion module for 5V/3.3V output up to 2A
- Accessing all OBD-II PIDs available in the vehcile ECU
- Embedded MPU6050 accelerometer and gyro (model B only)
- Arduino library and example sketches
- Size: 72x48x28 mm
- Weight: 70g
- Cable Length: 1.2m
Model B: $59.90 USD
Freematics Vehicle Data Logger
Features:
- AVR ATmega328P controller (Arduino compatible)
- 32-bit protocol processor (CAN, KWP2000, ISO9141-2, NMEA)
- MPU6050 accelerometer/gyro/and temperature sensor
- microSD socket for mass-storage
- Optional onboard BLE / Bluetooth 2.1
- Opitonal embedded GPS receiver
- Optional lead-out cable for SPI/I2C/analog/digital/PWM
- High efficiency DC-DC conversion module for 5V/3.3V output up to 2A
- Size: 72x48x28 mm
- Weight: 90g

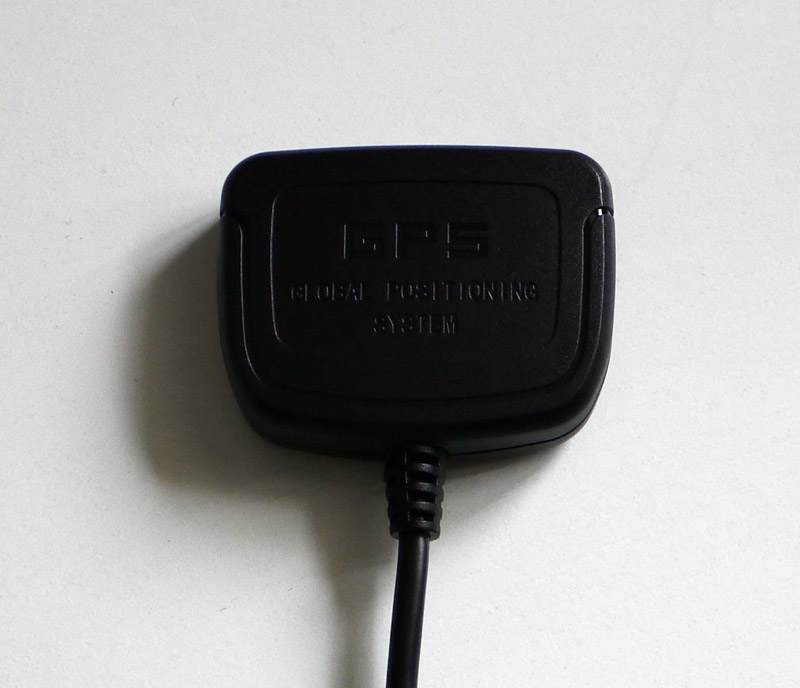

GPS Receiver for Arduino
Features:
- TTL UART interface
- 5Hz data update rate
- Fully compatible with Arduino using TinyGPS library
- Built-in ceramic antenna
- Size:42x21x10 mm
- Weight: 45g
These kits are made up of Arduino boards of different sizes, and all other necessary parts including the OBD-II adapter for putting up a ready-to-go device. This can be the jump-start of your telematics project with developed and working Arduino sketch and library (all open-source). The kits are provided at a reduced price which is much lower than ordering all the parts separately or from elsewhere.
OBD-II Telematics Kit #1
The kit consists of:
- Arduino OBD-II Adapter
- Arduino Nano (compatible)
- SD breakout board (SDHC compatible)
- I2C OLED display module (0.96″ 128×64 pixels)
- Wires needed for connecting all parts (x10)
- Complete source code (Arduino sketch and libraries)
Please note that the PCB color and layout may vary from the pictures.
OBD-II Telematics Kit #2
The kit consists of:
- Arduino OBD-II Adapter
- Compact MEGA 2560 (Arduino MEGA 2560 compatible)
- Data Logger Shield for Arduino (optional BLE/BT)
- 5Hz GPS Receiver for Arduino (optional)
- 2.8″ TFT LCD shield for Arduino (optional)
- Complete source code (Arduino sketch and libraries)

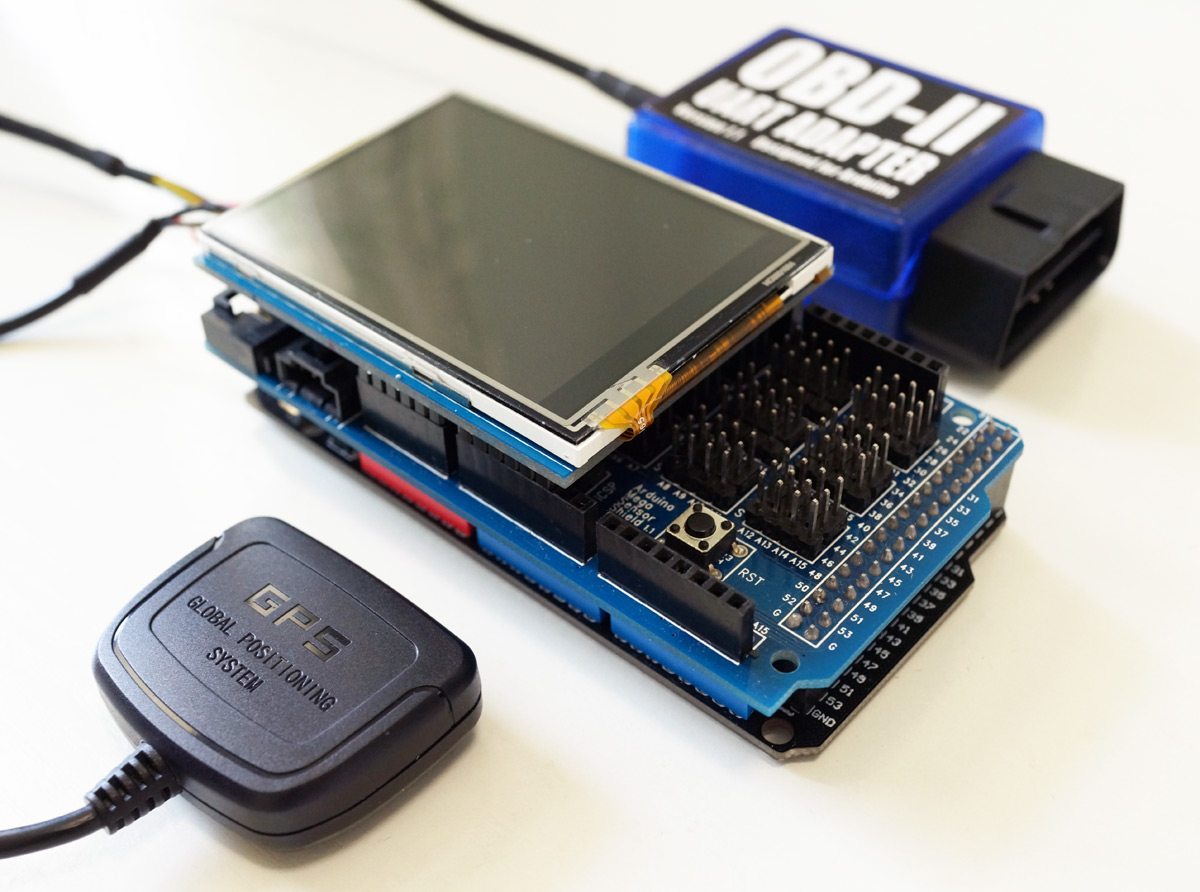

OBD-II Telematics Kit #3
The kit consists of:
- Arduino OBD-II Adapter
- Arduino MEGA 2560 / MEGA ADK
- 3.2″ TFT LCD shield for Arduino (with SD socket)
- Multi-Hz GPS Receiver for Arduino (optional)
- Complete source code (Arduino sketch and libraries)
Price: USD $89.90+
Freematics 3.2″ TFT LCD Shield for Arduino
Features:
- 320×240 pixels / 262K colors
- Working voltage switchable between 5V and 3.3V
- MicroSD seat
- Supported by MultiLCD library for Arduino

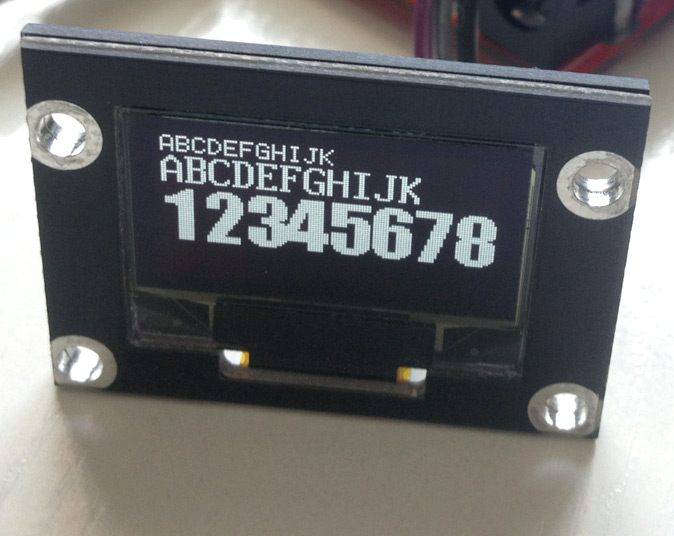

I2C OLED module for Arduino
Features:
- 1.3″ screen size
- Monochrome 128×64 white pixels
- SH1106 controller
- I2C data interface, only 4 wires (3v3/GND/SDA/SCL) needed for connection
- Supported by MicroLCD library

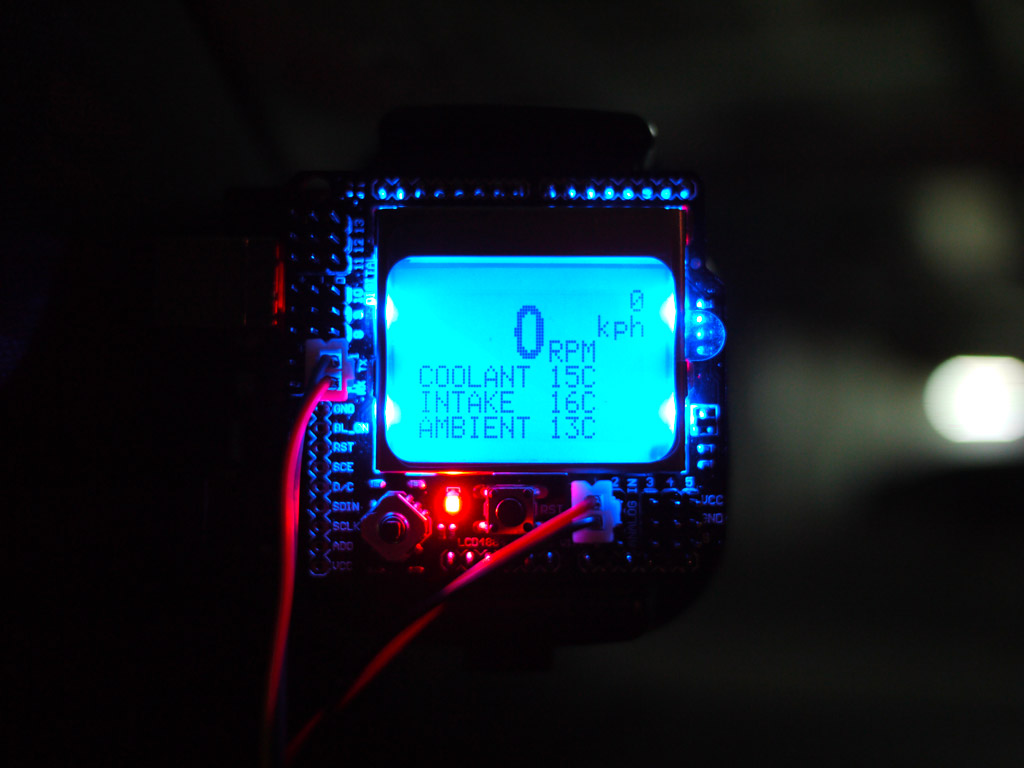

LCD Shield for Arduino
Features:
- 84×48 pixels display with backlight
- 5 DOF joystick and reset button
- Breakout for Rx/Tx, D8~D13, A0~A5
- Dashboard sketch based on the shield
- Supported by MultiLCD library for Arduino
Serial RGB LED Matrix Module
Features:
- I2C and serial UART data interface
- 8×8 RGB LED with adjustable brightness
- Built-in 5×7 character font and 3×5/3×7 digit font
- Easy-to-use Arduino library
- 4-pin I2C cable included
- Arduino library and example sketch provided
- Programmable (with Arduino) ATMega328p onboard
- Size: 60x60x15mm
- Weight: 30g

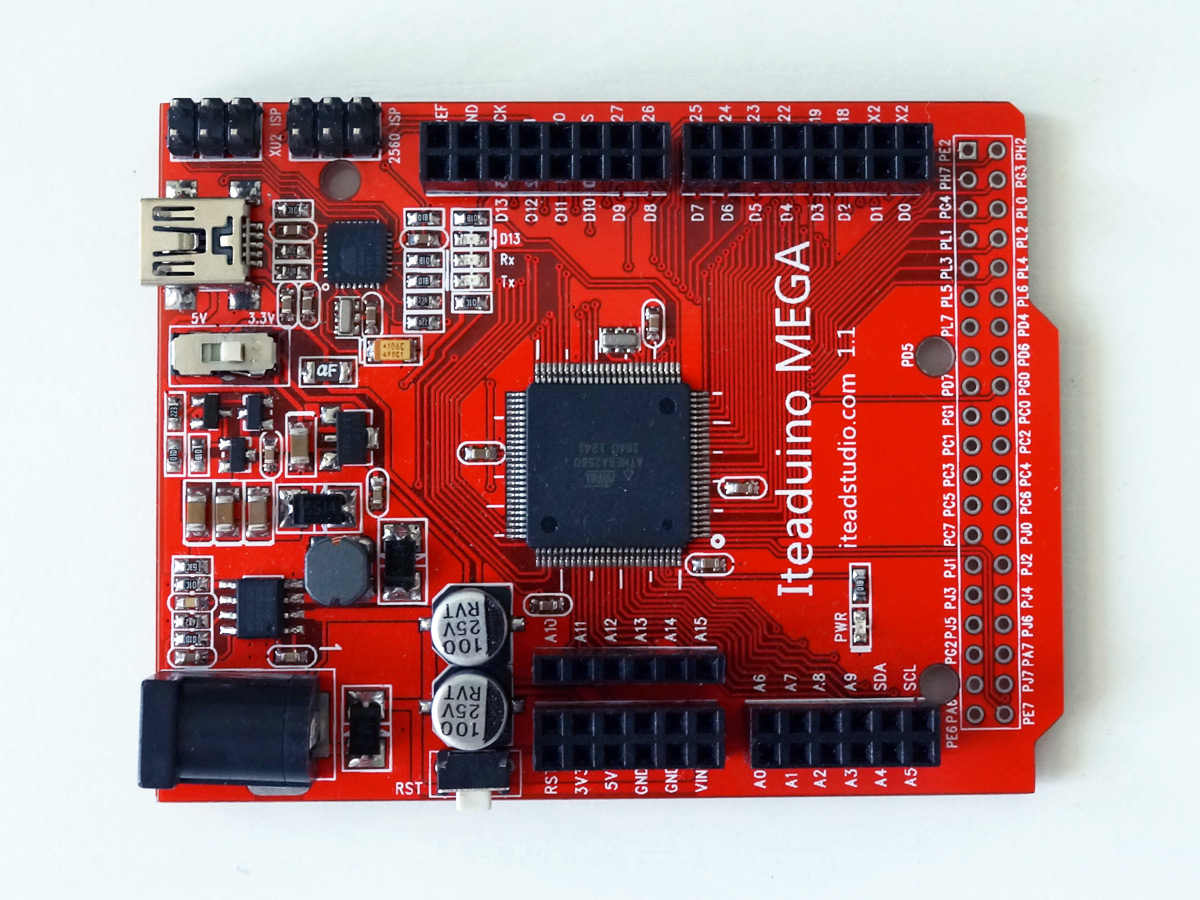

Compact MEGA 2560
Features:
- Arduino MEGA2560 in size of UNO
- 100% software compatible with Arduino MEGA 2560
- Pinouts compatible with Arduino UNO (with additional rows for extended use)
- High efficient DC/DC conversion circuit
- 5V or 3.3V operating voltage

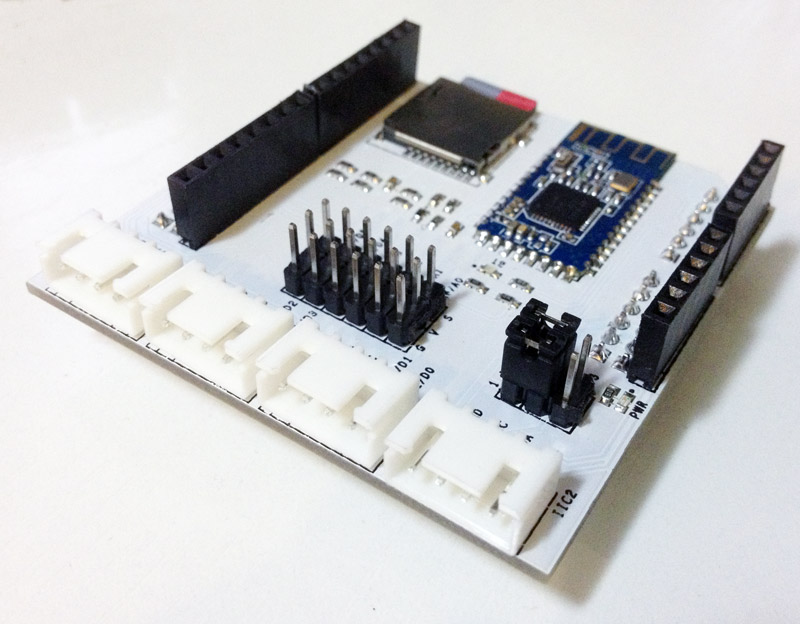

Data Logger Shield for Arduino
Features:
- Serial UART socket (GND,VCC,Tx,Rx) x 2
- I2C socket (GND,VCC,SDA,SCL) x 2
- 3-pin digital I/O breakout x 2
- 3-pin analog I/O breakout x 4
- MicroSD/TF socket
- Onboard BLE (Bluetooth Low-Energy) or Bluetooth 2.1 (optional)
- 5v/3.3v switchable for I2C voltage
- Stackable with additional shield
Price: USD $12.95+
